use TestDB

go

if object_id('RelactionGraph') Is not null drop table RelactionGraph

create table RelactionGraph(ID int identity,Item nvarchar(50),RelactionItem nvarchar(20),constraint PK_RelactionGraph primary key(ID))

go

create nonclustered index IX_RelactionGraph_Item on RelactionGraph(Item) include(RelactionItem)

create nonclustered index IX_RelactionGraph_RelactionItem on RelactionGraph(RelactionItem) include(Item)

go

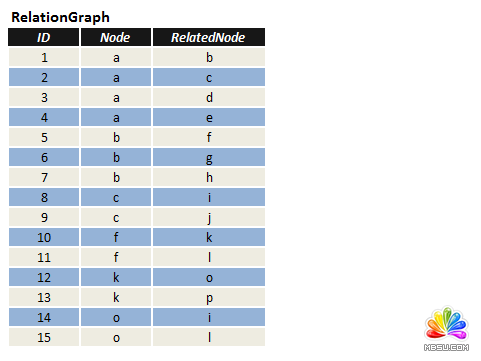

insert into RelactionGraph (Item, RelactionItem ) values

('a','b'),('a','c'),('a','d'),('a','e'),

('b','f'),('b','g'),('b','h'),

('c','i'),('c','j'),

('f','k'),('f','l'),

('k','o'),('k','p'),

('o','i'),('o','l')

go

use TestDB
go
--Procedure:
if object_id('up_GetPath') Is not null
Drop proc up_GetPath
go
create proc up_GetPath
(
@Node nvarchar(50),
@RelatedNode nvarchar(50)
)
As
set nocount on

declare
@level smallint =1, --當前搜索的深度
@MaxLevel smallint=100, --最大可搜索深度
@Node_WhileFlag bit=1, --以@Node作為中心進行搜索時候，作為能否循環搜索的標記
@RelatedNode_WhileFlag bit=1 --以@RelatedNode作為中心進行搜索時候，作為能否循環搜索的標記

--如果直接找到兩個Node存在直接關系就直接返回
if Exists(select 1 from RelationGraph where (Node=@Node And RelatedNode=@RelatedNode) or (Node=@RelatedNode And RelatedNode=@Node) ) or @Node=@RelatedNode
begin
select convert(nvarchar(2000),@Node + ' --> '+ @RelatedNode) As RelationGraphPath,convert(smallint,0) As StopCount
return
end

--

if object_id('tempdb..#1') Is not null Drop Table #1 --臨時表#1，存儲的是以@Node作為中心向外擴展的各節點數據
if object_id('tempdb..#2') Is not null Drop Table #2 --臨時表#2，存儲的是以@RelatedNode作為中心向外擴展的各節點數據

create table #1(
Node nvarchar(50),--相對源點
RelatedNode nvarchar(50), --相對目標
Level smallint --深度
)

create table #2(Node nvarchar(50),RelatedNode nvarchar(50),Level smallint)

insert into #1 ( Node, RelatedNode, Level )
select Node, RelatedNode, @level from RelationGraph a where a.Node =@Node union --正向：以@Node作為源查詢
select RelatedNode, Node, @level from RelationGraph a where a.RelatedNode = @Node --反向：以@Node作為目標進行查詢
set @Node_WhileFlag=sign(@@rowcount)

insert into #2 ( Node, RelatedNode, Level )
select Node, RelatedNode, @level from RelationGraph a where a.Node =@RelatedNode union --正向：以@RelatedNode作為源查詢
select RelatedNode, Node, @level from RelationGraph a where a.RelatedNode = @RelatedNode --反向：以@RelatedNode作為目標進行查詢
set @RelatedNode_WhileFlag=sign(@@rowcount)

--如果在表RelationGraph中找不到@Node 或 @RelatedNode 數據，就直接跳過后面的While過程
if not exists(select 1 from #1) or not exists(select 1 from #2)
begin
goto While_Out
end

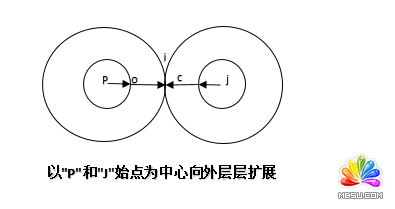

while not exists(select 1 from #1 a inner join #2 b on b.RelatedNode=a.RelatedNode) --判斷是否出現切點
and (@Node_WhileFlag|@RelatedNode_WhileFlag)>0 --判斷是否能搜索
And @level<@MaxLevel --控制深度
begin
if @Node_WhileFlag >0
begin
insert into #1 ( Node, RelatedNode, Level )
--正向
select a.Node,a.RelatedNode,@level+1
From RelationGraph a
where exists(select 1 from #1 where RelatedNode=a.Node And Level=@level) And
Not exists(select 1 from #1 where Node=a.Node)
union
--反向
select a.RelatedNode,a.Node,@level+1
From RelationGraph a
where exists(select 1 from #1 where RelatedNode=a.RelatedNode And Level=@level) And
Not exists(select 1 from #1 where Node=a.RelatedNode)

set @Node_WhileFlag=sign(@@rowcount)

end


if @RelatedNode_WhileFlag >0
begin
insert into #2 ( Node, RelatedNode, Level )
--正向
select a.Node,a.RelatedNode,@level+1
From RelationGraph a
where exists(select 1 from #2 where RelatedNode=a.Node And Level=@level) And
Not exists(select 1 from #2 where Node=a.Node)
union
--反向
select a.RelatedNode,a.Node,@level+1
From RelationGraph a
where exists(select 1 from #2 where RelatedNode=a.RelatedNode And Level=@level) And
Not exists(select 1 from #2 where Node=a.RelatedNode)
set @RelatedNode_WhileFlag=sign(@@rowcount)
end

select @level+=1
end

While_Out:

--下面是構造返回的結果路徑
if object_id('tempdb..#Path1') Is not null Drop Table #Path1
if object_id('tempdb..#Path2') Is not null Drop Table #Path2

;with cte_path1 As
(
select a.Node,a.RelatedNode,Level,convert(nvarchar(2000),a.Node+' -> '+a.RelatedNode) As RelationGraphPath,Convert(smallint,1) As PathLevel From #1 a where exists(select 1 from #2 where RelatedNode=a.RelatedNode)
union all
select b.Node,a.RelatedNode,b.Level,convert(nvarchar(2000),b.Node+' -> '+a.RelationGraphPath) As RelationGraphPath ,Convert(smallint,a.PathLevel+1) As PathLevel
from cte_path1 a
inner join #1 b on b.RelatedNode=a.Node
and b.Level=a.Level-1
)
select * Into #Path1 from cte_path1

;with cte_path2 As
(
select a.Node,a.RelatedNode,Level,convert(nvarchar(2000),a.Node) As RelationGraphPath,Convert(smallint,1) As PathLevel From #2 a where exists(select 1 from #1 where RelatedNode=a.RelatedNode)
union all
select b.Node,a.RelatedNode,b.Level,convert(nvarchar(2000),a.RelationGraphPath+' -> '+b.Node) As RelationGraphPath ,Convert(smallint,a.PathLevel+1)
from cte_path2 a
inner join #2 b on b.RelatedNode=a.Node
and b.Level=a.Level-1
)
select * Into #Path2 from cte_path2

;with cte_result As
(
select a.RelationGraphPath+' -> '+b.RelationGraphPath As RelationGraphPath,a.PathLevel+b.PathLevel -1 As StopCount,rank() over(order by a.PathLevel+b.PathLevel) As Result_row
From #Path1 a
inner join #Path2 b on b.RelatedNode=a.RelatedNode
and b.Level=1
where a.Level=1
)
select distinct RelationGraphPath,StopCount From cte_result where Result_row=1
go

use TestDB

go

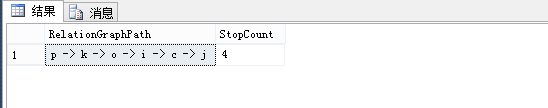

exec dbo.up_GetPath

@Node = 'p',

@RelatedNode = 'j'

go
